LOCKSTAR APT100LOCK(H132)
- Product Specifications
- Download
- Product Catalog
| Product No. | APT100LOCK(H132) |
|---|---|
| Product Code | 80000027 |
| Category | OTHERS |
| Stock | make to order |
| Type of Bracket | APT Type |
| Material of Metal Fittings | Steel Plain |
| Material of mounting plate | Steel Plain |
| Color of Metal Fittings | Silver |
| Color of mounting plate | Silver |
| Body Coating | BZP(Brilliant Zinc Plating) |
Mounting height(H[mm])？
 |
132 |
| Mounting Method | Plate Type |
Mounting base(A×B[mm])？
 |
120×120 |
Mounting dimensions(X×Y[mm])？
 |
100×100(85×85) |
Hole Diameter(P[mm])？
 |
11 |
| Wheel Weight[g] | 1590 |
| Others1 | Pad adjuster Diameter(D［mm］) 80 |
| Others2 | Height(Locking)(H1［mm］) 136 Height(Unlocking)(H2［mm］) 120 Stroke(S［mm］) 16 |
| Others3 | Length of pedal(L1［mm］) 136 Length from the edge of mounting plate(L2［mm］) 86 Gap from mounting plate［mm］ 14 |
| Quantity per Case | 6 |
*Allowance load of one caster
Product catalog
Digital Catalog
Flyer
Other Resources
-
*The Picture is a typical product image.
You can download by click.
APT100LOCK(H132)
- Mounting Method
- Brand Logo

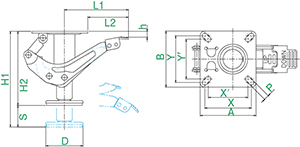

External dimensions
Wheel SpecificationIcon Description
Plate Type
